20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm

20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm
20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm 20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm

Hình ảnh lớn :  20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: HY
Chứng nhận: ISO9001:2008

Thanh toán:

Minimum Order Quantity: 5 tons
Giá bán: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 30tons a day
Chi tiết sản phẩm
Chrome thickness: 20-30 micron Product name: Steel guide rod
Diameter tolerance: ISO f7 Surface hardness: 850-1150 HV (vickers 100g)
Surface roughness: Ra≤0.2micron and Rt≤2micro Surface treatment: Chrome Plating
Điểm nổi bật:

metal guide rod

,

guide rods

20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm





Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Diameter: 6mm - 1000mm

3. Length: 1000mm - 8000mm

4. Tensile strength: Not less than 610 N/MM2

5. Yield strength: Not less than 355 N/MM2





Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

    Half of the tolerance ISO f7

8. STRAIGHTNESS

    ≤0.2MM/M

9. SURFACE HARDNESS

    850-1150HV (vickers 100g)

10.COHESION

     No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

    in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required





20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm 0

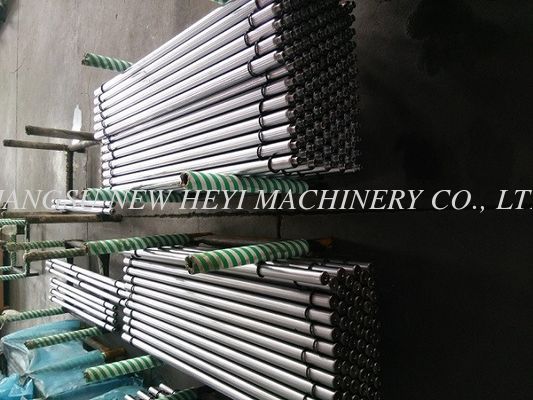

From 2016, we have imported continous chrome plating line from Italy which is the first one in China.

In addition, we have established intelligent workshop with all automatic equipment which is especially for export products.



20MnV6 Metal Guide Rod For Machinery Industry , Diameter 6mm - 1000mm 1
