| Place of Origin: | China |
| Hàng hiệu: | HY |
| Chứng nhận: | ISO9001:2008 |
| Minimum Order Quantity: | 5 tons |
|---|---|
| Giá bán: | negotiable |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30tons a day |
| độ nhám bề mặt: | Ra≤0,2micron và Rt≤2micron | Sản phẩm: | Cây gậy piston khí nén |
|---|---|---|---|
| Độ bền kéo: | Không nhỏ hơn 610 N/MM2 | sức mạnh năng suất: | Không nhỏ hơn 355 N/MM2 |
| dung sai đường kính: | iso f7 | Độ cứng bề mặt: | 850-1150 HV (vickers 100g) |
| Làm nổi bật: | Dây pít-tơ thủy lực chống ăn mòn,ngành công nghiệp Hydraulic Piston Rod,Cây gậy piston thủy lực cứng bằng cảm ứng |
||

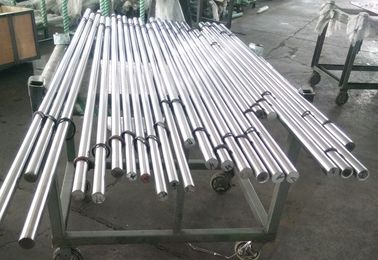

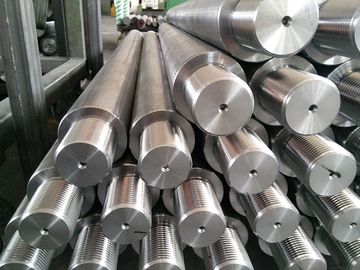

Industry Hydraulic Piston Rod Corrosion Resistant With Induction Hardened
Detailed Product Description
1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr
2. Diameter: 6mm - 1000mm
3. Length: 1000mm - 8000mm
4. Advanced inspection apparatus
5. Application: Mining machinery industry, textile / printing industry and so on
Detailed Description
1.CHEMICAL COMPOSITION
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
|
|
|
ST52 |
0.22 |
1.6 |
0.55 |
0.035 |
0.04 |
|
|
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
0.035 |
0.035 |
0.10-0.20 |
|
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
0.03 |
0.03 |
|
0.90-1.20 |
|
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
|
|
|
0.80-1.10 |
2.MECHANCIAL PROPERTIES
|
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
|
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
|
ST52 |
500 |
355 |
22 |
|
NORMALIZE |
|
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
|
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
|
40Cr |
1000 |
800 |
10 |
|
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
