| Place of Origin: | China |
| Hàng hiệu: | HY |
| Chứng nhận: | ISO9001:2008 |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Giá bán: | negotiable |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30tons a day |
| Vật liệu: | Thép hợp kim siêu nhỏ | Tên: | Thanh thép hợp kim siêu nhỏ |
|---|---|---|---|
| Điều trị bề mặt: | Mạ crom | độ dày của crôm: | 20 - 30 micron |
| Độ bền kéo: | Không ít hơn 750 MPa | sức mạnh năng suất: | Không ít hơn 520 Mpa |
| Làm nổi bật: | Cây thép bọc kim loại ISO,Thép hợp kim vi mô Đánh trực tiếp |
||

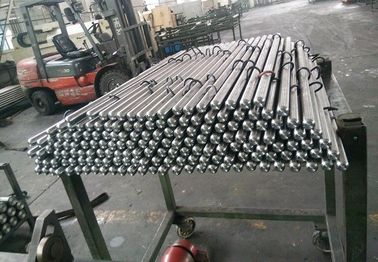

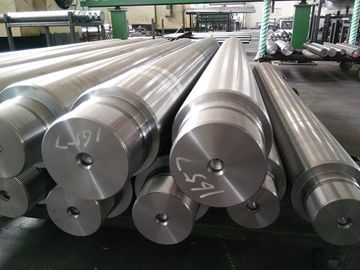

ISO Micro Alloy Steel Hard Chrome Plated Rod Directly Turning
Product Description
1. The mechanical property of non-quenched and tempered steel products is correspond to quenched
and tempered 42CrMo4, 40Cr and CK45 or over them and very uniform on the whole cross section.
2. Turning performance: Turning performance is commensurate to 42CrMo4, 40Cr and CK45 or be
superior to them.
3. Hardness: Hardness is more uniform on the whole cross section than quenched and tempered
42CrMo4, 40Cr and CK45
4. Save manufacturing expenses and avoid waste in the tempering process.
5. Shortened processing periods, enhance productivity and reduce the occupied capital.
6. Low processing cost, needless quenched and tempered process and the second turning.
Detailed Description
1. MATERIAL: HY4700, HY4520
2. CHEMICAL COMPOSITION(%)
Material | C% | Mn% | Si% | S% | P% | V% | Ni | Cr% | Mo | Cu |
HY4700 | 0.38-0.45 | 1.20 ~1.60 | 0.30~0.50 | ≤0.035 | ≤0.020 | 0.05～0.15 | ≤0.25 | 0.10～0.20 | ≤0.15 | 0.25 |
HY4520 | 0.40 ~0.48 | 0.80 ~1.40 | 0.15 ~0.35 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.25 | ≤0.25 | ≤0.15 | ≤0.25 |
3. MECHANICAL PROPERTIES
Material | MECHANICAL PROPERTIES | Surface hardness(HBW) | |||||
Rm(MPa) | Rel(MPa) | A% | Z% | KU2(J) |
| ||
HY4700 | Φ35 - Φ100 | 900 - 1100 | ≥650 | ≥16 | ≥35 | ≥39 | 270-340 |
＞Φ100 - Φ140 | 850 - 950 | ≥600 | ≥16 | ≥35 | ≥39 | 270-340 | |
HY4520 | Φ40 - Φ100 | 750 - 900 | ≥520 | ≥19 | ≥40 | ≥39 | 230-290 |
＞Φ100～Φ140 | 750 - 900 | ≥520 | ≥17 | ≥35 | ≥39 | 230-290 | |
|
|
|
|
|
|
|
|
4. SUPPLY CONDITION
Ground and chrome plated
5. CHROME THICKNESS
20 to 30 micron
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micron
9. STRAIGHTNESS
≤0.2MM/M
10 .SURFACE HARDNESS
850-1150HV (vickers 100g)
11. COHESION
No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees
and cooling in water)
12 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
13. WELDABILITY
Good
14. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-120hours
Results evaluation according to ISO 4540 RATING 7-10
15. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
16. CERTIFICATE
All certificate related with material heat treatment and plating is required
