Hydraulic Cylinder Chrome Steel Shaft 6mm - 1000mm High Precision Induction Hardened Rod

Hydraulic Cylinder Chrome Steel Shaft 6mm - 1000mm High Precision Induction Hardened Rod
Hydraulic Cylinder Chrome Steel Shaft 6mm - 1000mm High Precision Induction Hardened Rod Hydraulic Cylinder Chrome Steel Shaft 6mm - 1000mm High Precision Induction Hardened Rod

Hình ảnh lớn :  Hydraulic Cylinder Chrome Steel Shaft 6mm - 1000mm High Precision Induction Hardened Rod

Thông tin chi tiết sản phẩm:

Nguồn gốc: China
Hàng hiệu: HY
Chứng nhận: ISO9001:2008

Thanh toán:

Số lượng đặt hàng tối thiểu: 5 tons
Giá bán: Negotiation
chi tiết đóng gói: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Thời gian giao hàng: 30days
Điều khoản thanh toán: L/C, T/T
Khả năng cung cấp: 30tons a day
Chi tiết sản phẩm
Product name: Induction hardened rod Induction hardness: HRC50-60
Surface hardness: 850-1150 HV (vickers 100g) Surface treatment: Hard chrome plated
Hard chrome thickness: 25 +/- 5 micron Surface roughness: Ra≤0.2micron and Rt≤2micro
Điểm nổi bật:

hardened steel bar

,

hardened steel rod

Hydraulic Cylinder Hardened Steel Shaft 6mm - 1000mm High Precision





Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Ground and chrome plated

3. Tensile strength: Not less than 610 N/MM2

4. Yield strength: Not less than 355 N/MM2

5. Advanced inspection apparatus

6. Case depth:1.5mm - 2.5mm  Induction hardness:HRC50 - 60





Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

   ≤0.2MM/M

9. SURFACE HARDNESS

   850-1150HV (vickers 100g)

10.COHESION

   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

    in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required



We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!

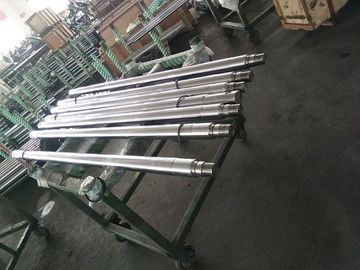

Hydraulic Cylinder Chrome Steel Shaft 6mm - 1000mm High Precision Induction Hardened Rod 0

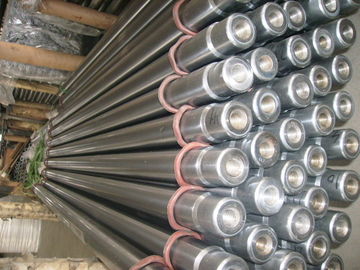

Hydraulic Cylinder Chrome Steel Shaft 6mm - 1000mm High Precision Induction Hardened Rod 1
