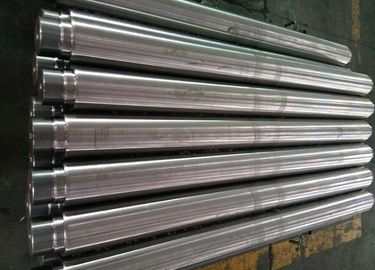

Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa

Chứng nhận
Trung Quốc Jiangsu New Heyi Machinery Co., Ltd Chứng chỉ
Trung Quốc Jiangsu New Heyi Machinery Co., Ltd Chứng chỉ
Khách hàng đánh giá
Good service, good quality

—— AMMA - Russia

Very good factory

—— Peter-America

Tôi trò chuyện trực tuyến bây giờ

Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa

Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa
Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa

Hình ảnh lớn :  Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: HY
Chứng nhận: ISO9001:2008

Thanh toán:

Minimum Order Quantity: 1 tons
Giá bán: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 30tons a day
Chi tiết sản phẩm
Product: Hydraulic piston rod Material: Micro Alloy Steel
Diameter: 35mm - 140mm Ovality: Half of the tolerance ISO f7
Tensile strength: Not less than 750MPa Yield strength: Not less than 520 Mpa
Điểm nổi bật:

chrome plated piston rod

,

chrome plated steel rod



Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa



Product Description


1. Shortened processing periods, enhance productivity and reduce the occupied capital.
2. Low processing cost, needless quenched and tempered process and the second turning.
3. The steel directly directly turning saves the logistics cost

4. Save manufacturing expenses and avoid waste in the tempering process
5. Energy conservation: Production no quenched and tempered process greatly saves the energy
    consumption.
6. Environments protection: Production no quenched and tempered process meets the requirements of
    environmental protection.

Detailed Description

1. MATERIAL: HY4700, HY4520

2. CHEMICAL COMPOSITION(%)

Material

C%

Mn%

Si%

S%

P%

V%

Ni

Cr%

Mo

Cu

HY4700

0.38-0.45

1.20 ~1.60

0.30~0.50

≤0.035

≤0.020

0.05~0.15

≤0.25

0.10~0.20

≤0.15

0.25

HY4520

0.40 ~0.48

0.80 ~1.40

0.15 ~0.35

≤0.035

≤0.035

≤0.15

≤0.25

≤0.25

≤0.15

≤0.25



3. MECHANICAL PROPERTIES


Material

MECHANICAL PROPERTIES

Surface hardness(HBW)

 Rm(MPa)

Rel(MPa)

A%

Z%

KU2(J)



HY4700

Φ35 - Φ100

900 - 1100

≥650

≥16

≥35

≥39

270-340

>Φ100 - Φ140

850 - 950

≥600

≥16

≥35

≥39

270-340

HY4520

Φ40 - Φ100

750 - 900

≥520

≥19

≥40

≥39

230-290

>Φ100~Φ140

750 - 900

≥520

≥17

≥35

≥39

230-290



















4. SUPPLY CONDITION
    Ground  and  chrome plated
5. CHROME THICKNESS
     20 to 30 micron
6. TOLERANCES ON DIA
     ISO f7 on the diameter
7.OVALITY
    Half of the tolerance ISO f7
8. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micron
9. STRAIGHTNESS
   ≤0.2MM/M

10 .SURFACE HARDNESS
     850-1150HV (vickers 100g)
11. COHESION

     No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

    and cooling in water)
12. WELDABILITY
     Good
13 .POROSITY
      Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

14. CORROSION RESISTANCE
     Test in natural salt spray according to ASTM B 117-120hours
     Results evaluation according to ISO 4540 RATING 7-10
15. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
16. CERTIFICATE
      All certificate related with material heat treatment and plating is required

Microalloyed Steel Hydraulic Cylinder Piston Rod Yield Strength Not Less Than 520 Mpa 0
